Name: ORNATE Time Management Server V4
Brand: Bihar Communications Pvt Ltd

Overview

Central Command for Your Timing Fleet

Time Management Server V4 is Bihar Communications' web-based management platform for NTP clocks, GPS standalone clocks and NTP time servers. It auto-discovers every unit broadcasting on the local network — no manual setup, no per-device configuration — and gives you a live, single-pane view of sync status, drift and health across your entire deployment.

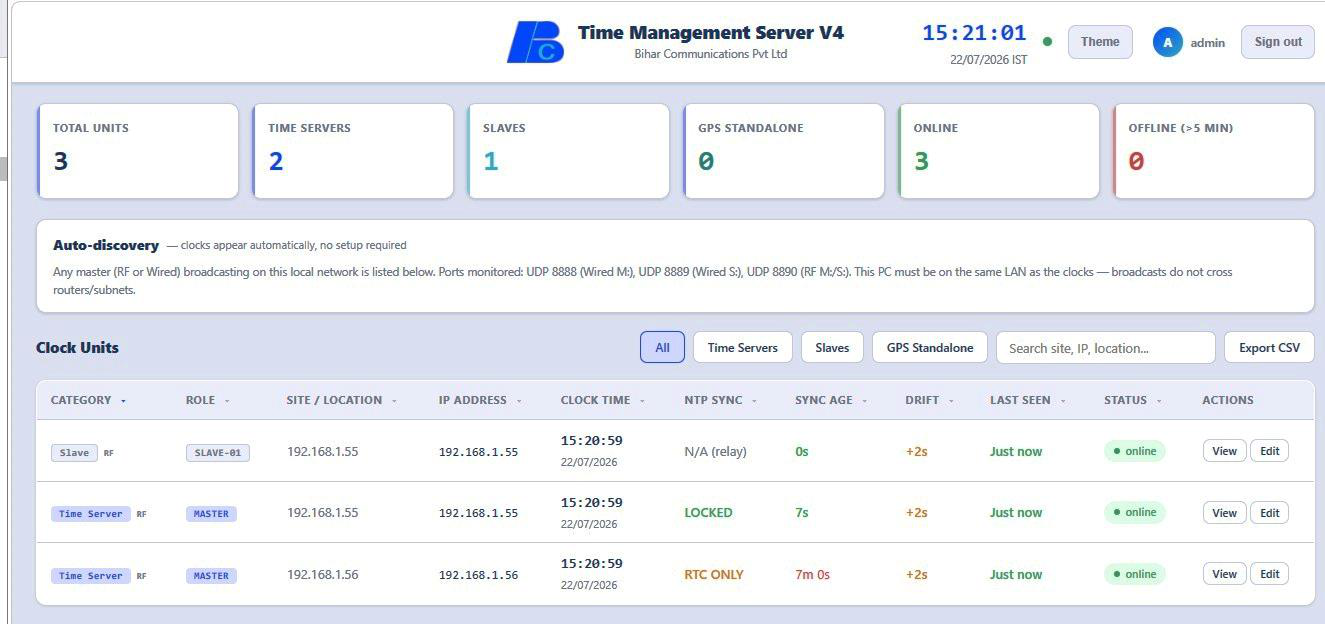

Time Management Server V4 dashboard showing clock units, sync status and drift monitoring

Live dashboard — Total Units, Time Servers, Slaves and GPS Standalone counts at a glance, with per-unit sync status, drift and last-seen time.

Key Features

Built to Manage, Not Just Display

Everything a facility, IT or timing-infrastructure team needs to keep a fleet of clocks provably in sync.

🔍

Zero-Config Auto-Discovery

Any master (RF or Wired) broadcasting on the local network is listed automatically. No setup required — clocks appear the moment they're powered on. Ports monitored: UDP 8888 (Wired Master), UDP 8889 (Wired Slave), UDP 8890 (RF Master/Slave).

📊

Live Fleet Summary

Total Units, Time Servers, Slaves, GPS Standalone, Online and Offline (>5 min) counts — updated in real time on the dashboard home screen.

🗂️

Unified Clock Registry

Every unit listed with Category, Role (Master/Slave), Site/Location, IP Address, Clock Time, NTP Sync status, Sync Age, Drift and Last Seen — in one sortable, filterable table.

✅

NTP Sync & Drift Monitoring

Instantly see which units are LOCKED, running on RTC ONLY, or relayed via a slave — with live drift (±seconds) so accuracy issues are caught before they matter.

🔎

Search, Filter & Export

Filter by All / Time Servers / Slaves / GPS Standalone, search by site, IP or location, and export the full clock registry to CSV for reporting or audits.

🖥️

View & Edit Per Unit

Drill into any clock for full detail, or edit its configuration directly from the dashboard — no separate tool or on-site visit required.

🌐

Web-Based, On-Premise

Runs entirely on your local network — accessible from any browser on the same LAN. No cloud dependency, no external data exposure.

🇮🇳

Made in India

Designed and developed by Bihar Communications Pvt Ltd — the same team behind BC-NTS time servers and the ORNATE clock range, since 1985.

Manages

Works Across Your Entire Clock Fleet

🖥️ NTP Time Servers

Monitor Stratum-1 NTP time servers as Master units — sync lock status, drift and uptime, all from one screen.

🕐 NTP Clocks

Track network-synchronized display and wall clocks operating as RF or Wired slaves under a master time server.

🛰️ GPS Standalone Clocks

Include GPS-referenced standalone units in the same registry, alongside your networked time servers and slave clocks.

📡 RF & Wired Slave Clocks

Both wireless (RF) and wired slave clocks report into the dashboard with their role, site and live sync relay status.
